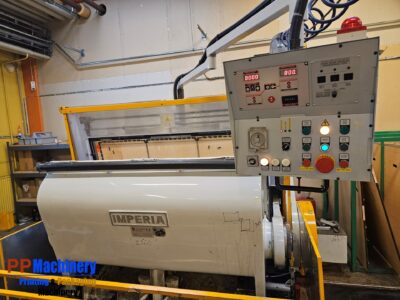

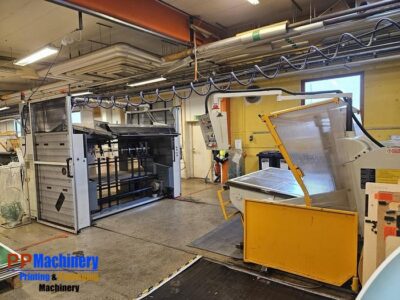

2000 RABOLINI F with FEEDER AND BATCH DELIVERY Max format

Specification IMPERIA F +  feeder + Special batch Delivery

• 1 (one) S/H IMPERIA F 120x165cm with electronic feeder and special batch delivery system, delivered, controlled and checked with 6 months warranty

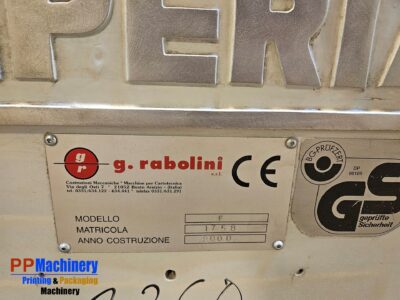

• Year of manufacture 2000
• with electronic feeder (no high pile)
• Speed Approx. 1350 strokes per hour
• min board thickness 400gr/m²
• Corrugated board thickness max 7mm
• pneumatic clutch- variable speed,
• Equipped according to CE regulations
• special suction cups with 50mm telescopic – pneumatically adjustable arms
• SPS System
• PICARD die cutting plate
• micrometric adjustment of the pressure in addition to the standard one

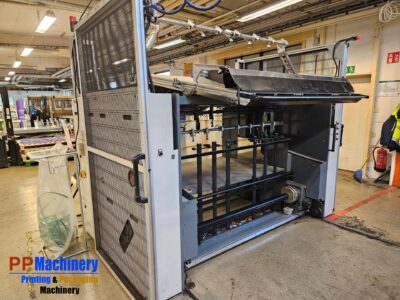

• special universal chase-mobile delivery table for conveying blanks, pneumatically controlled with automatic lowering device allowing to the operator to have available a batch of blanks to remove. Entrance 1000mm – Exit 80mm.

Specifications

• Max sheet size mm                  1660 x 1200
• sheet size mm                    700  x   500
• cut to cut form size mm       1640 x 1190
• Feed Pile Height mm                    1020
• delivery blanks batch height mm                         80
• Adjustable mechanical speed (strokes per hour) mm        900  –   1400
• Variable Speed motor power HP         15 – KW 11
• Total required Power KW                15
• Required Compressed Air Bar                5,5
• substance flat board sheet (rigid sheet is requested) gr/m².                         400
• thickness solid boards                                     mm                            1,6
• thickness corrugated paper board sheet mm                             7
• Platen installed power KW                            12
• Pressing Capacity                             Kg          000
• Mechanical variable speed(with inverter unit):range available s/hour    900 -1300
• Weight of the complete platen machinery, about          13
• Machine suitable to fit a standard form                                          23,8
• Net Weight Machine Kg          500
• Overall dimensions mm  7000 x 3200 x 2600(h)
